We carry 4 tap guides. 3 Standard/Imperial V-TapGuides and 1 Metric V-TapGuide.
The "v-groove" is a 90° design that runs through the entire guide. The "v-groove" is found on the bottom of the guide and ensures perpendicular alignment on round and cornered material.
A V-TapGuide is a tap guide that answers the call to accurately guide hand-tapped threads on the inside of a hole to accept a machine screw or bolt. If you start every hole straight, it will help prevent tap breakage and increase the tap life.
The tap guide can also be used to restore an internal thread that has been damaged or to cut a new, larger thread in case of severe damage or stripping.
The V-TapGuide is made to guide common used ground threaded taps for their called-out bolt size. STI (Screw Thread Inserts) V-TapGuide is made to guide oversized ground threaded taps made for the outside diameter for the screw threaded inserts needed for the called-out bolt size. Standard taps will not work with the STI V-TapGuides.
The tap guide is offered in Standard or Metric sizes. The STI V-TapGuide is offered in Coarse or Fine Thread Sizes.
The V-TapGuide is easy to use: place the tap guide on the work surface, with the "v-groove" side resting on the surface. Insert the tap through the guide into the pre-drilled hole and turn it clockwise. The tap will then be aligned perpendicularly using the guide as the base; this will ensure a straight and accurately tapped hole. Every few turns, back the tap out counterclockwise to clear the chips. It's beneficial to hand tap because the tap resistance can be felt and that feel helps prevent tap breakage. Tap straight - every time!

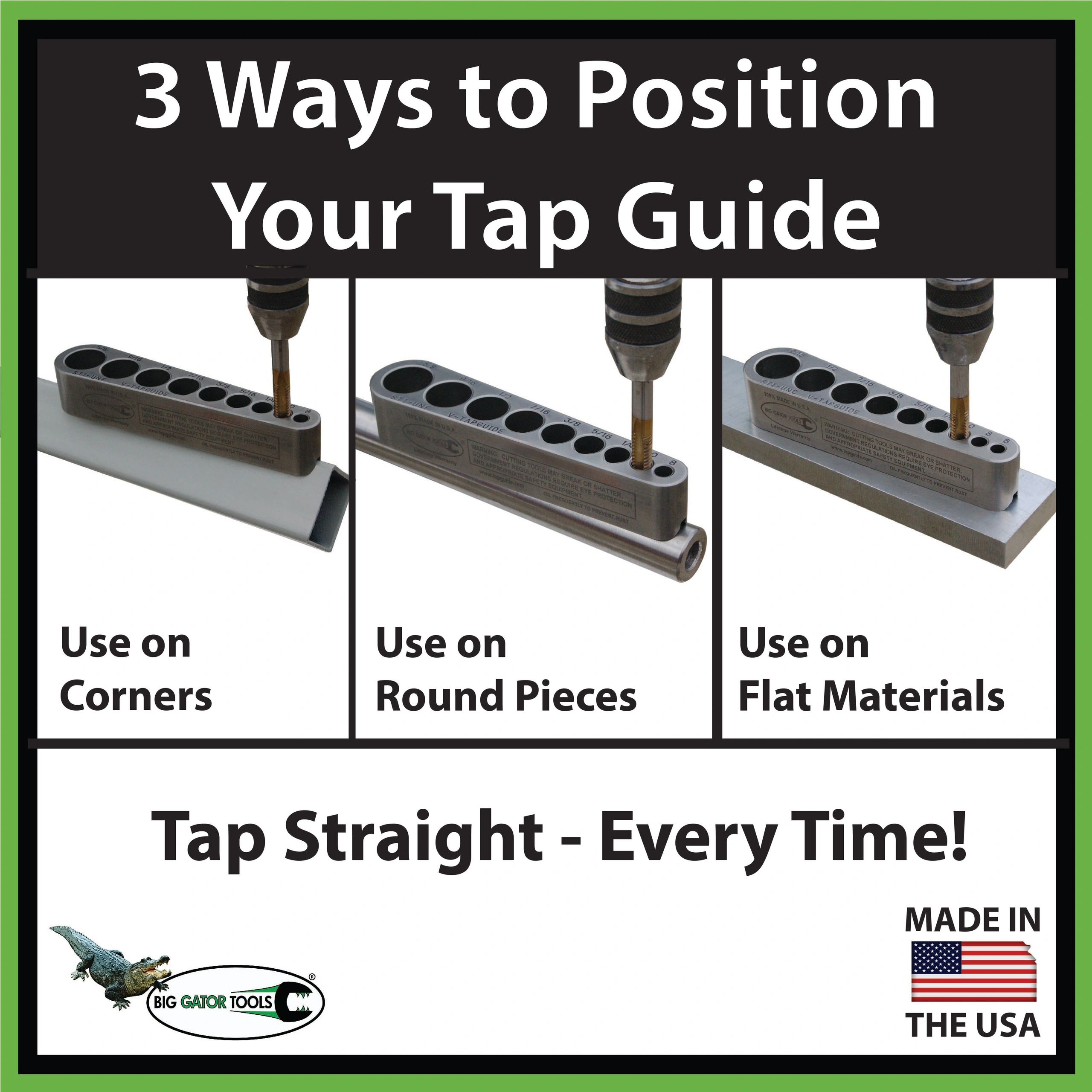

The "v-groove" at the bottom allows you to use the V-TapGuide on corners or round pieces. The ground, flat base allows use on flat materials.
Check out this great video about the V-TapGuides. It also explains the drill guides we manufacture as well. To learn more, watch the video and keep reading the frequently asked questions below.
0-80 to #6 have the same size shank so only one hole size is needed. Anything below a 6-32 share the common size shank used to guide the tap.
No, there is no wear or gouging from the teeth on the taps. The V-TapGuides are all made with alloyed steel that's heat-treated to make it durable.
Yes! You can use the V-TapGuide on round parts, angled edges and flat surfaces.
Yes! Time and money will be saved by tapping a hole once with the confidence of a perfectly aligned hole on wood, plastic or metal surfaces. Scrap and re-work are almost eliminated completely when using the V-TapGuide.
Big Gator Tools offers a Lifetime Warranty on any of the V-TapGuides.
Our V-DrillGuides & V-TapGuides are 100% American-made and will last for generations to come; we back that idea by offering a Lifetime Warranty for those tools. We don’t skimp on quality - the whole guide is made from steel that is heat-treated for durability, allowing a tight tolerance for drilling or tapping.
The drill guides and tap guides are made of 100% USA-made steel that's heat-treated for durability. This is why we offer a Lifetime Warranty! They're long-lasting tools.
No! These tools are made in the United States of America. Even the plastic tube the guide comes in and its label is made in America. We try to keep our jobs close. A purchase of one of our tools helps other fellow Americans. We thank you for your business.
